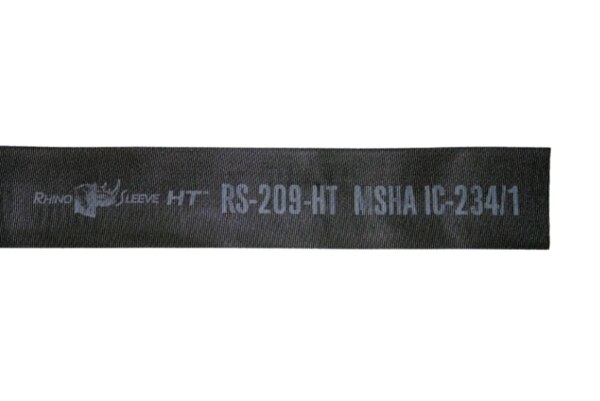

RS-209HT RHINO Sleeve® HT/ Roll (300ft/ £1.54 per ft)
Brennan Industries RHINO Sleeve® HT Sleeving is designed to provide protection against hydraulic hose failure by containing pressure and fluids that may escape during a hose burst or pinhole leak. With this new line of sight sleeving which meets industry standards, both equipment operators and the environment are guarded from the effects of hose failures. This product can expose you to chemicals inlcuding Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
RHINO Sleeve® HT Features
- Meets new line of sight operator specification EN982 ISO norm 833 EN414
- Meets Australian MDG41 specifications for mining applications
- Meets California Prop 65
- Meets RoHS
- Ultra tight construction contains oil spillage from pin hole leaks
- Tight, smooth surface to resist water
- 50% less bulky than Cordura
- Densely twisted proprietary engineered fabric offers optimum UV & abrasion protection
- MSHA# IC-234/1
- Meets abrasion standard ISO 6945
- Meets Fed-STD191-Test Method 5309 for abrasion
- Meets ASTM D6770 for abrasion resistance of textile webbing
- Meets conductivity requirements of ISO 8031
- Cut to length
Benefits when sized properly through 1 inch I.D. hydraulic hose:
Burst Pressure:Capable to contain hose burst up to 20,000 p.s.i.
Pin Hole Leak:Handles a 1mm pin hole leak up to 4,000 p.s.i.
Abrasion Testing:Tested to over 250,000 abrasion cycles using ISO Testing 6945.RHINO Sleeve® HT Sleeve Selection as per Hose Dash Size*
- Select the correct sleeve I.D. for the hose, refer to table for sleeve I.D. to Hose O.D.. ratio per hose dash size. For example: Selecting -8 hydraulic hose (1/2” I.D.)
- The Sleeve I.D. to use from the chart on the right is: 1.50, then multiply your selected Hose O.D. times the number from the chart to equal (=) the Selected Sleeve I.D.
- Then select the RHINO Sleeve® HT part number whose I.D. is closest to the calculated I.D.
* Sleeve should be cut 2-3 inches longer than hose length.
* Proper use of product is the sole responsibility of the user
| Hose Dash Size | Sleeve I.D to Hose O.D. Ratio |
| -4 | 1.44 |
| -6 | 1.45 |
| -8 | 1.50 |
| -10 | 1.55 |
| -12 | 1.55 |
| -16 | 1.55 |
| -20 | 1.60 |
| -24 | 1.63 |
| -32 | 1.65 |
Meets RoHS • Meets California Prop 65
| Gasoline | Very Good |
| Oil | Very Good |
| Mineral & Vegetable | Very Good |
| Ionic Metallic Solutions | Very Good |
| Alcohols | Very Good |
| Diluted Bases | Very Good |
| Diluted Acids | Good |
| Benzene | Very Good |
| Acetone | Very Good |
| Ether | Very Good |
| Carbon Tectrachloride | Very Good |
| Chlorine Based Solvents | Very Good |
| Mold, Bacteria, Moths | Very Good |
| Strong & Concentrated Acids | May Have Some Corrosive Action |
